asi.W
AUTOMATED
WEB CUTTER

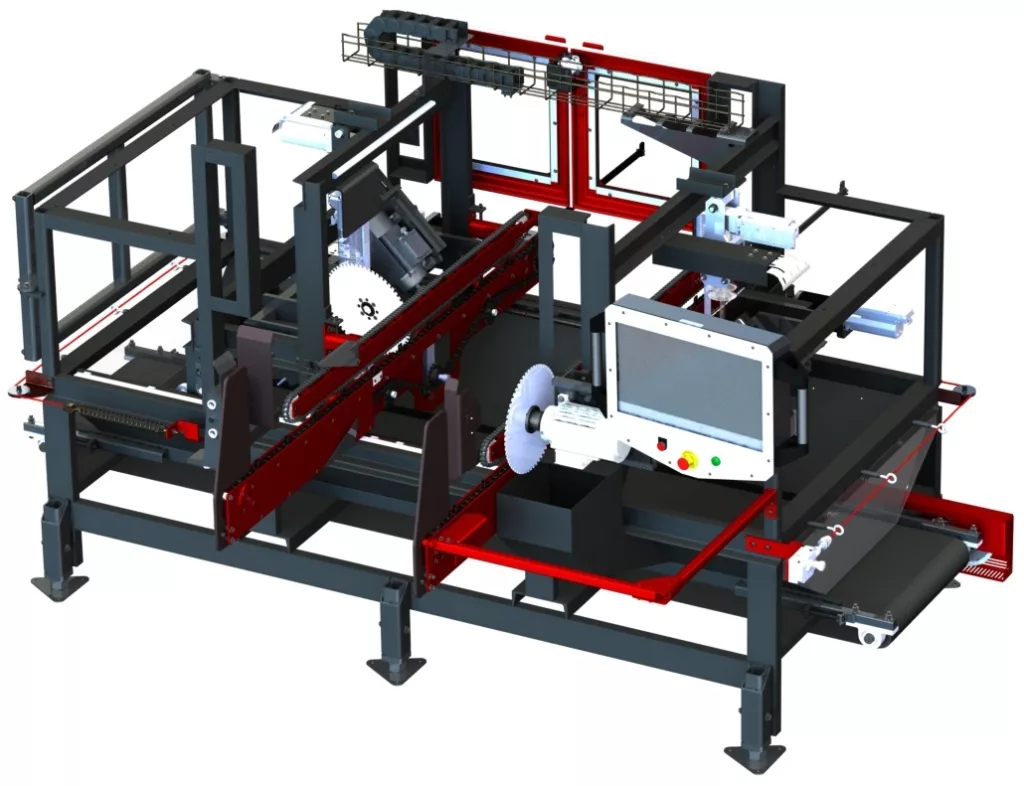

asi.W is an automated web cutter.
FEATURES
- 100% automated positionning
- Faster, more accurate, fewer errors
- Up to 60 components per minute
- Cuts floor truss webs
- 3 x 2; 4 x 2; 6 x 2
- Square (90/90) webs
- From 7-7/8 in to 45-1/2 in
- Angled webs 15°/75°-75°/15°
- 10-1/4 in to 48 in
- Saw files read: EHX, TRS, Sapphire XML, EZY, CYB, WCD, ASI, BTL, BTLx, Alpine eShop
- Five (5) 4.5 KW (6 HP – 460 V – 3 ph) blade motors with integrated mechanical brakes
- 14 in blade

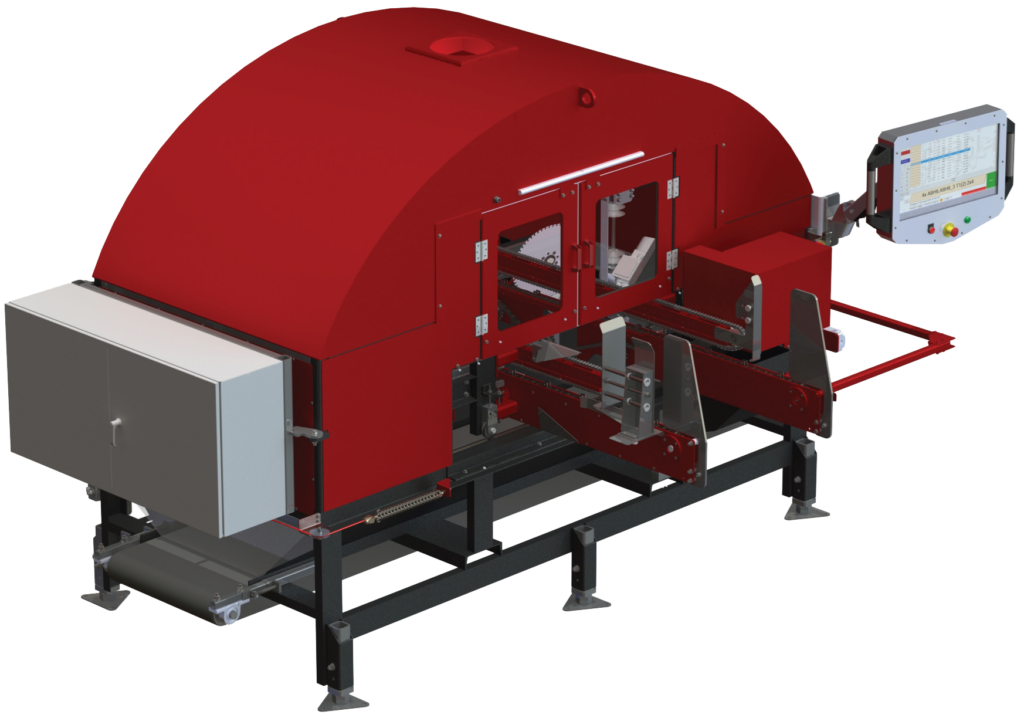

- Totally enclosed frame
- Less noise, less dust
- 27 flights infeed chain
- 10-piece manual feeder
- Machine configuration backup system for seamless
recovery/restart - Real-time statistics compilation and error tracking,
accessible via our customer portal - cULus approved control panel

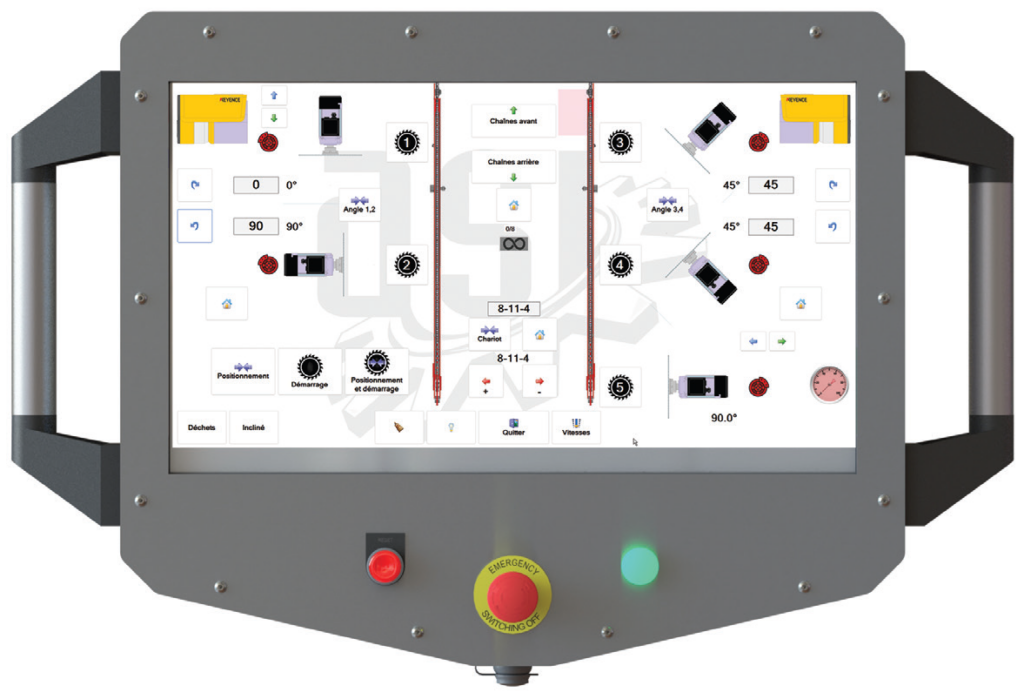

- Intuitive multilingual HMI in English, French and Spanish
100%
AUTOMATED
READS YOUR CUT FILES DIRECTLY
INCLUDES
- Sealed bearings used to minimize maintenance time and increase lifetime
- State-of-the-art control panel featuring Schneider- Electric PacDrive 3 electronics
- Five (5) high resolution, high speed, high torque Schneider-Electric LXM62 ILM series integrated AC servomotors for accurate positioning
- Hybrid cable plug and go technology for easy replacement
- Planetary gearboxes with lifetime lubrification for increased efficiency and minimal maintenance
- Easy axis by axis calibration
- Automatic, Semi-automatic & hybrid manual mode
- 24 in Lenovo touchscreen SSD computer with Windows 11 Pro operating system and asiW software featuring an ultra-intuitive HMI
- Lifetime access to software updates
SAFETY FEATURES
- Fully enclosed frame
- Category 3 high end Schneider-Electric XPSMCM relay with manual acknowledgement
- Safety-interlocked access door
- Safety pull cord around ¾ of the saw
- HMI equipped with an emergency stop
- Blade motors with integrated electrical brakes (5X)
OPTIONS
- Incline motorized scrap conveyor
- Lot of critical spare parts
- Automatic stacker (upcoming)
- Printing system option (upcoming)
- Automatic feeder (upcoming)
DOCUMENTATION
Demand is already strong
We are pleased to add the asiW to our catalog.
Due to the high level of interest, we are experiencing a significant initial demand. To ensure fair treatment, orders will be fulfilled strictly on a first-come, first-served basis.
Secure your spot in the production queue today to get the fastest possible delivery.
